from idea until hardware

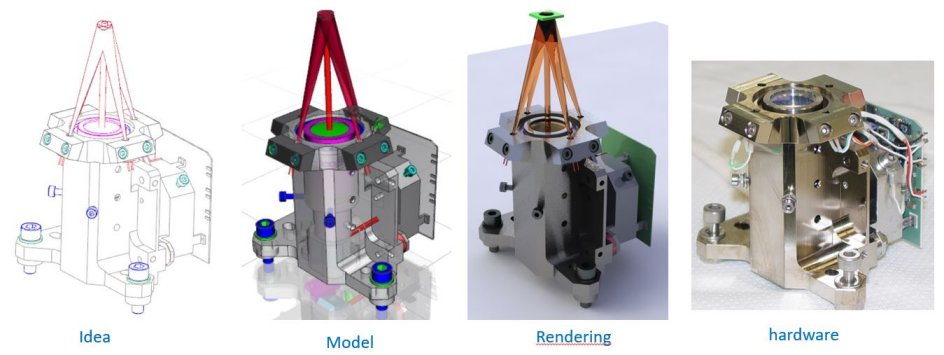

a normal fast project is always running from idea until hardware. here a example of such a project

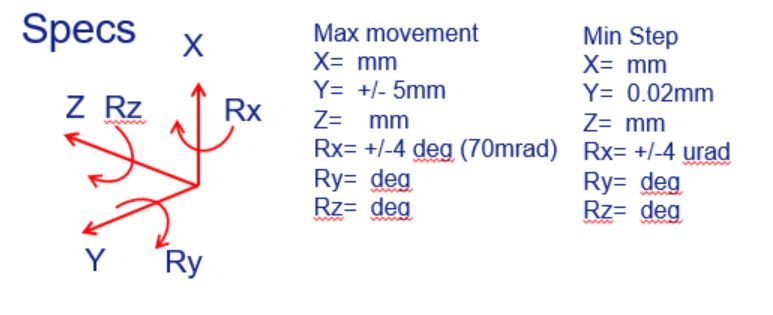

Specfications
it always start with a idea combined with specifications. this can be simple or complex but the better we have our specs the better the end result and expactations of out custumer will be!In this case we want to have an optical system that can have a trnslation and a rotation with a high stiffness and frequency

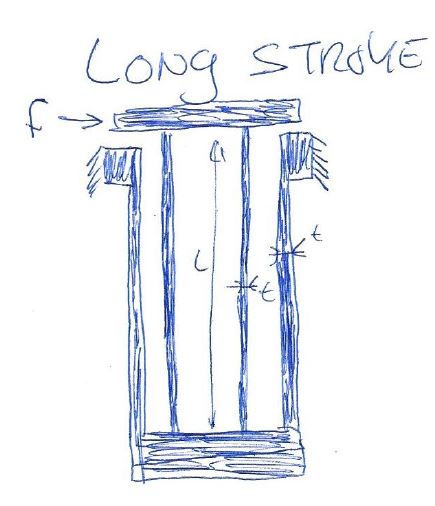

ideas fase
now there will be a number of ideas made on paper
>

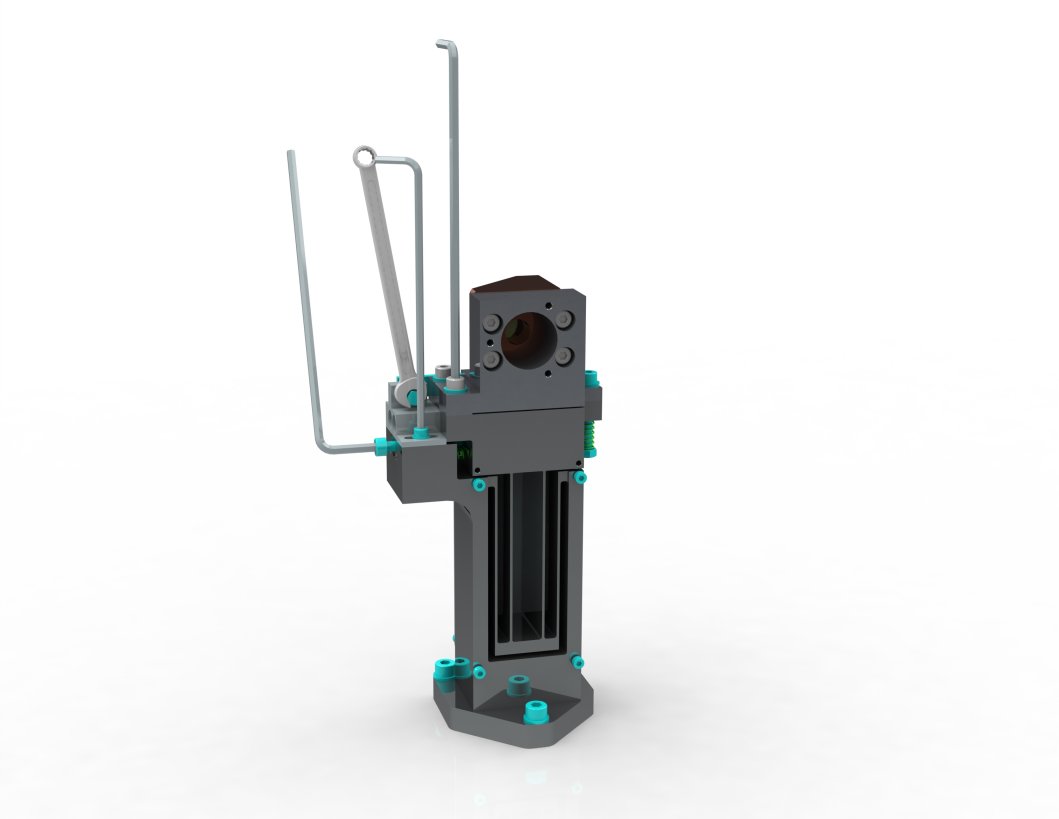

design fase
during the design fase the design will be made in a cad system (depended of the cumstomer with system) and this design will be check with Mathcad to check if there design is good enough for the specification

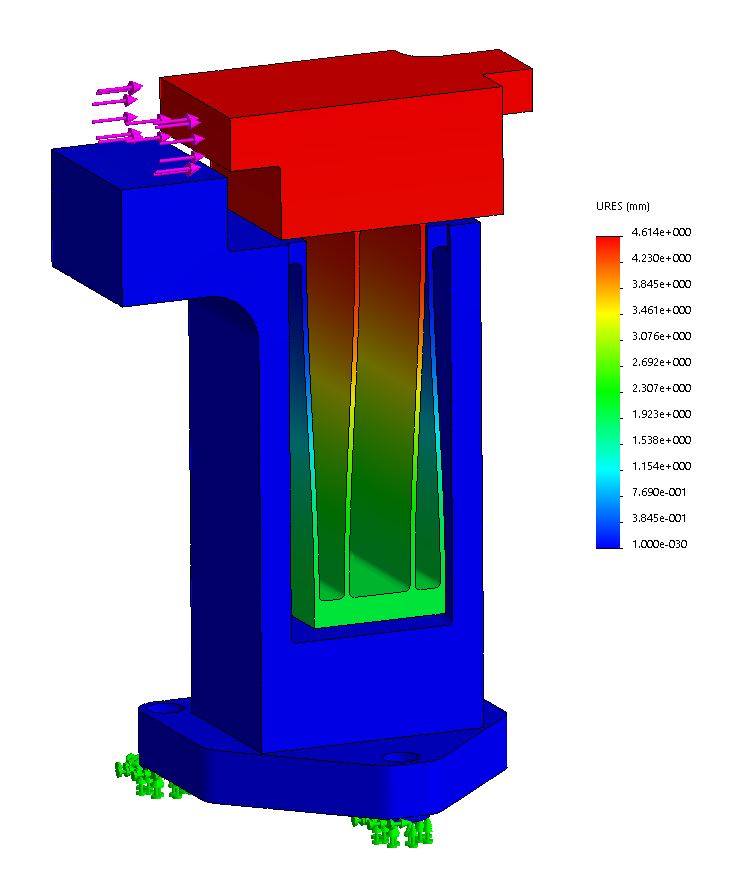

Fem calculations
check is the system can reach its positioning

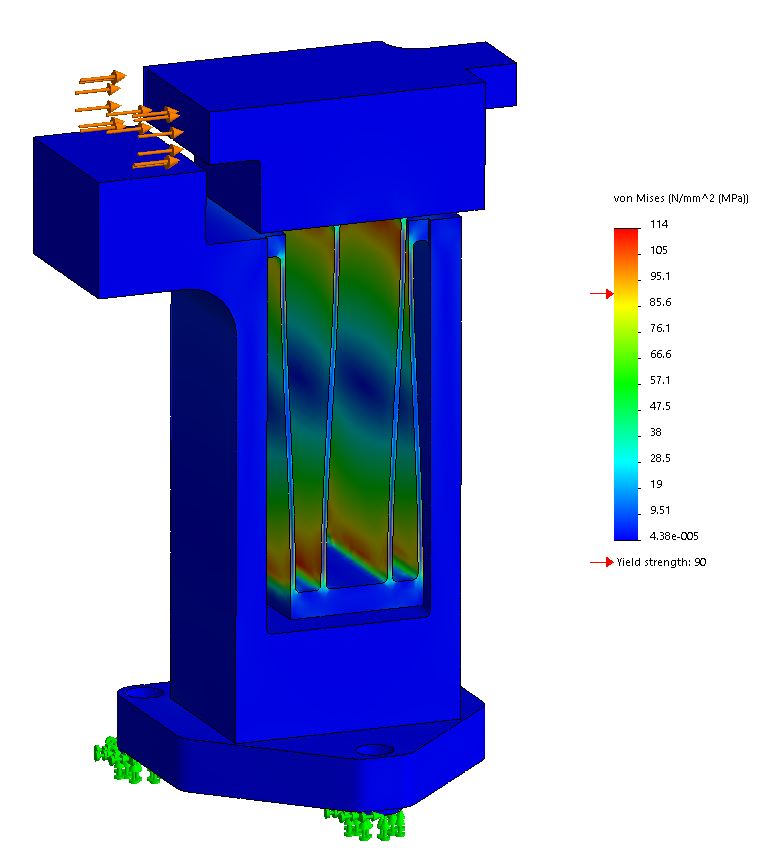

Stress
stress is below failure level

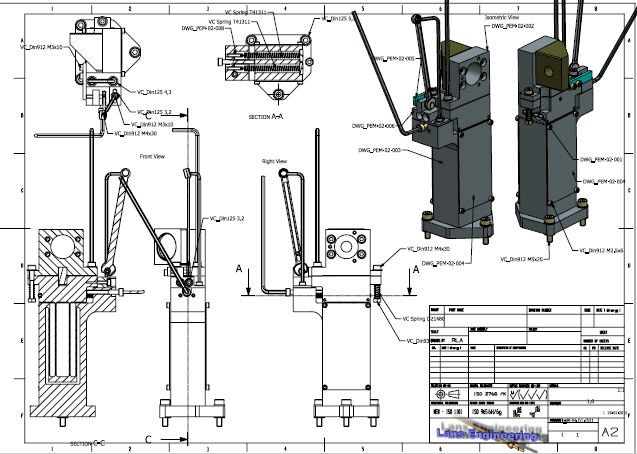

drawing
after all the checks the final drawing will begenerated

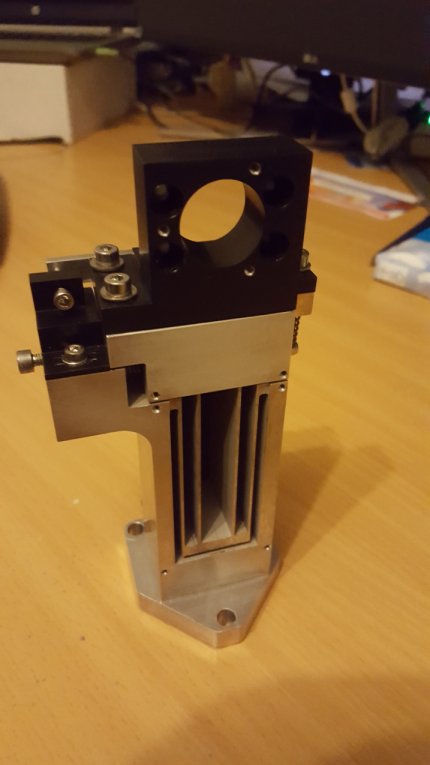

manufacturing
end result after production
